Multifunctional and powerful 3D cross line lasers

Introducing the ultimate solution for precise leveling: our Multicross 3D 18V MAX. A laser with interchangeable battery adapters that are compatible with 18V batteries from 11 different manufacturers. This way, you are always ensured of power, wherever you are. Enjoy seamless operation as you work with one horizontal and two vertical lines covering 360°, ensuring accuracy from every angle. Experience unmatched precision with an accuracy of 2mm per 10 meters. Plus, with a range of 120 meters (using a receiver) no task is too big or too far. Upgrade your leveling game today with our Level Laser.

Introducing the ultimate solution for precise leveling: our Multicross 3D 18V MAX. A laser with interchangeable battery adapters that are compatible with 18V batteries from 11 different manufacturers. This way, you are always ensured of power, wherever you are. Enjoy seamless operation as you work with one horizontal and two vertical lines covering 360°, ensuring accuracy from every angle. Experience unmatched precision with an accuracy of 2mm per 10 meters. Plus, with a range of 120 meters (using a receiver) no task is too big or too far. Upgrade your leveling game today with our Level Laser.
Main specifications
Visibility
Precision	2mm / 10m
Range (with receiver)	2x 70m
Dust- and water resistance	IP54
Batteries	18V LI-ION (not included)
AC power connector	USB-C
Levelling	Pendulum levelling
Detailed specifications
Plumb bob
Number of laser dots per line	0
Number of 90° angles	4
Rotations per minute	Not applicable
Scan function
Wind function
Tilt function
Self-levelling range	±4°
Slope function	Manual
Maximum settable slope (X-axis/Y-axis)	+/- 45°
Remote control
Built-in screw for tripod	1/4" & 5/8"
Pendulum lock (for manual slopes)
Transport security for the pendulum
Number of laser diodes	3
Laser frequency (in receiver mode)	10KHz
Laser class	Class 2, 505nm - 525nm, <1mW
Color of the laser beams	Green
Number of horizontal lines	4
Number of vertical lines	4
Dust and water tightness	IP54
Power supply and batteries
Batteries	18V LI-ION (not included)
AC power connector
Charger integrated into AC power connector	Not applicable
Article references
Article number	036.3DG
EAN-code	5420073804803
Disclaimer

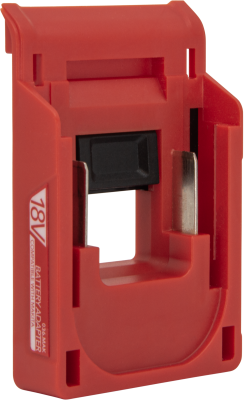

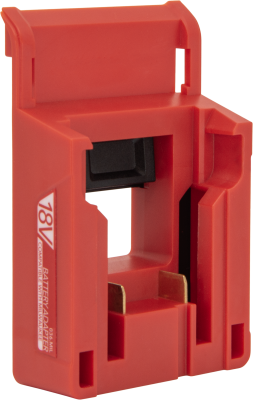

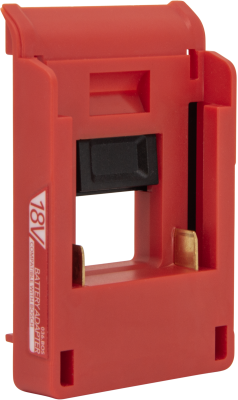

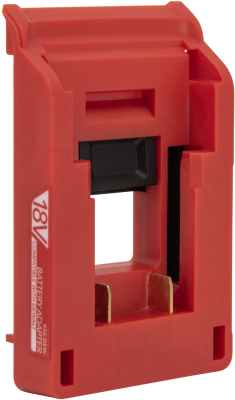

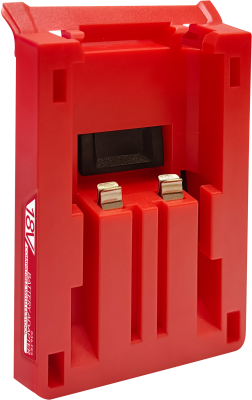

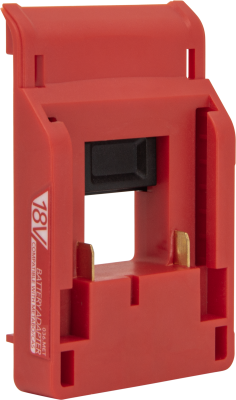

Multicross 3D/4D 18VMAX and 18VMAX battery adapters	The brands AEG, Bosch, Dewalt, Festool, Flex, Makita, Metabo, and Milwaukee are not owned by Futech (Laseto NV). Brands and images of batteries from third-party companies are shown solely to indicate compatibility with the Futech Multicross 3D 18VMAX.
Dimensions
DxWxH device	145 x 116 x 149 mm
Weight of device	0,5 kg
DxWxH box	155 x 420 x 360 mm
Weight box	3,86 kg

Main specifications
Visibility
Precision	2mm / 10m
Range (with receiver)	2x 70m
Dust- and water resistance	IP54
Batteries	18V LI-ION (not included)
AC power connector	USB-C
Levelling	Pendulum levelling

Power supply and batteries
Batteries	18V LI-ION (not included)
AC power connector
Charger integrated into AC power connector	Not applicable


DxWxH device	145 x 116 x 149 mm
Weight of device	0,5 kg
DxWxH box	155 x 420 x 360 mm
Weight box	3,86 kg

Detailed specifications
Plumb bob
Number of laser dots per line	0
Number of 90° angles	4
Rotations per minute	Not applicable
Scan function
Wind function
Tilt function
Self-levelling range	±4°
Slope function	Manual
Maximum settable slope (X-axis/Y-axis)	+/- 45°
Remote control
Built-in screw for tripod	1/4" & 5/8"
Pendulum lock (for manual slopes)
Transport security for the pendulum
Number of laser diodes	3
Laser frequency (in receiver mode)	10KHz
Laser class	Class 2, 505nm - 525nm, <1mW
Color of the laser beams	Green
Number of horizontal lines	4
Number of vertical lines	4
Dust and water tightness	IP54

In the box

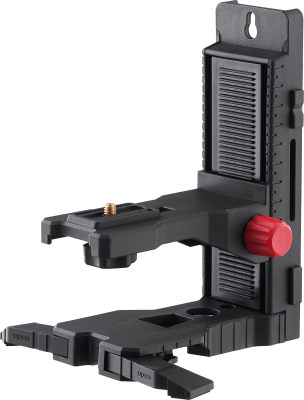

Accessories

Receivers

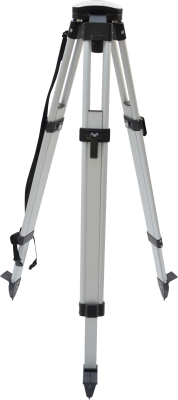

Tripods
